規 格 明 細

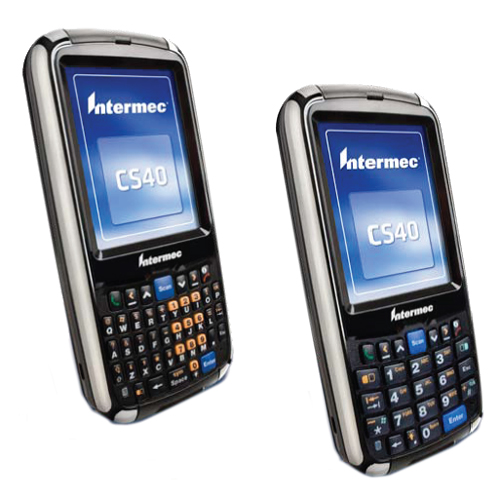

| 機型 | CS40 | |||
| CPU | Main Processor ARM 11 @ 528 MHz, Radio Processor ARM 9 @ 320 MHz | |||
| 記憶體 | 256 MB RAM, 512 MB Flash | |||
| 作業系統 | Windows Mobile 6.5 | |||
| 無線通訊 | 3.75G, GPRS, WiFi, Bluetooth, IEEE 802.11b/g | |||
| 定位系統 | 12 channel Integrated GPS; Supports Autonomous mode with extended ephemeris data; Supports assisted operation via WAN Carrier; Network independent; accuracy within 3m | |||
| 工作電池 | 3.7 V, 1430 mAh; IEEE 1725 compliant, Li-Ion, removable, rechargeable | |||
| 顯示器 | 2.8 in, 240 x 320 pixel (QVGA) trans-reflective, TFT-LCD display, 65,536 (16 bit RGB) colors, LED backlight, Touch screen | |||
| 鍵盤 | Numeric (26 key) or QWERTY (42 key) with backlight | |||
| 相機 | 3.2 Megapixel fixed focus color camera with flash | |||
| 尺寸(長x寬x高) | 13.3 x 6.3 x 2.4 cm (5.25 x 2.46 x 0.94 in) | |||
| 重量 | 196 gm (6.9 oz) with battery | |||
| 操作溫度 | -10° C to +50° C (14° F to +122° F) | |||
| 儲存溫度 | -25° C to +70° C (-13° F to +158° F) | |||
| 濕度 | Non-condensing, 95% | |||
| 工業防護設計 | 1.2m (4 ft)，IP54 | |||
| 靜電放電 | +/- 15 kV air discharge, +/- 8 kV direct discharge | |||
| EMC法規 | cULus Listed, DEMKO, NOM, BSMI, Class B-FCC/ICES/EN, GOST-R | |||
| 配件 | AC /DC charger; USB Y-cable for charging and active synchronization; Car power adapter; Truck power adaptor; Vehicle holder; RAM mounts | |||
